WHITE BRIDGE Technology

Welcome to the M2 Vinyl Flattener by WHITE BRIDGE Technolgy — a product engineered around the values of precision, reliability, and long-term consistency. Using a medical-grade thermal control system, microcrystalline glass, and a 5 kg top plate assembly, M2 maintains a stable heat profile within ±0.2°C to achieve sub-0.1 mm flattening precision. No guesswork. No uneven heating. Just reliable results, every time.

Before

After

Key Features

M2 was engineered from the ground up with one purpose — to set a new benchmark for vinyl flatteners. Guided by real collector feedback and powered by modern design, advanced materials, and cutting-edge thermal control, it’s built to outperform anything available today.

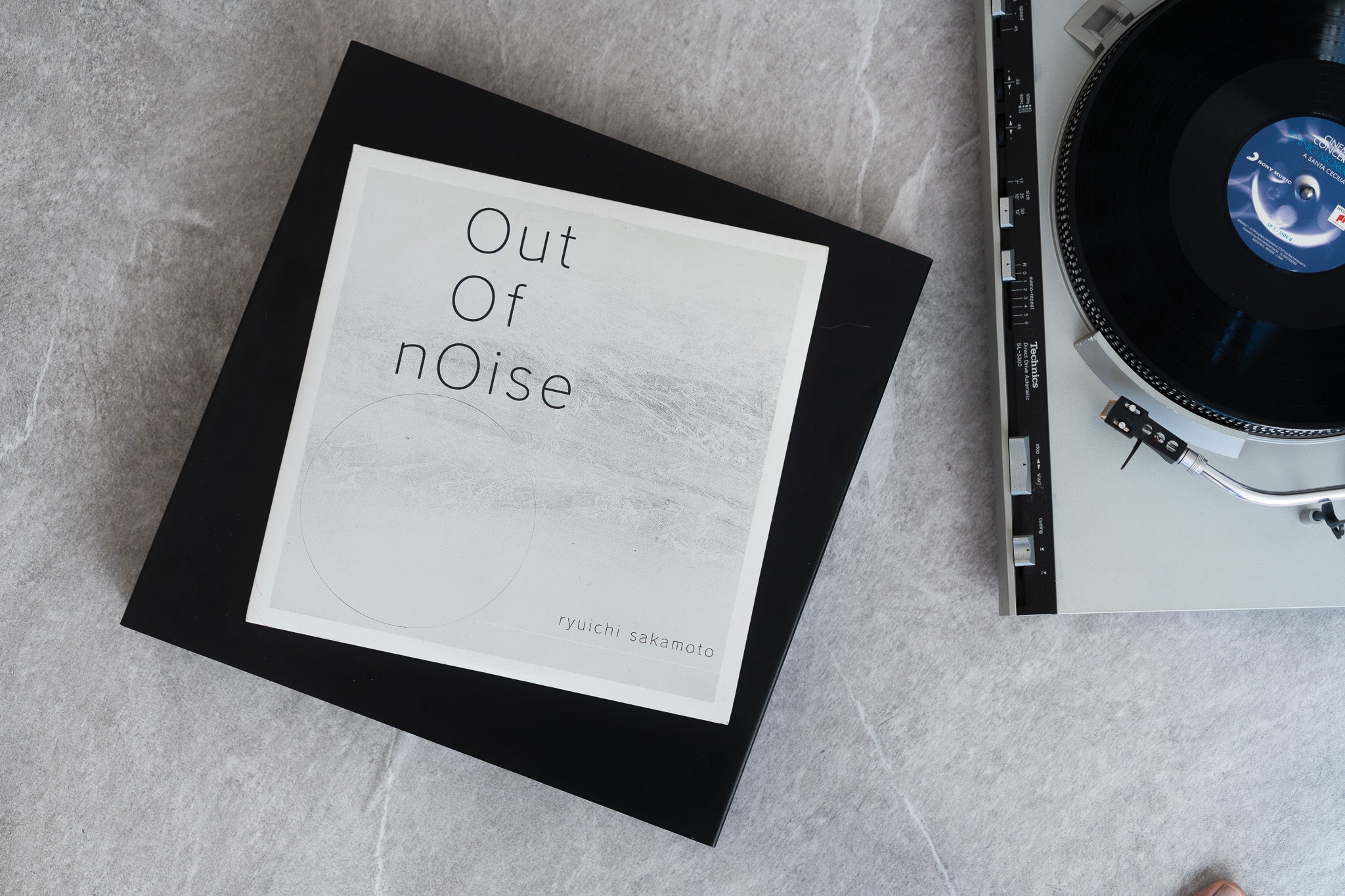

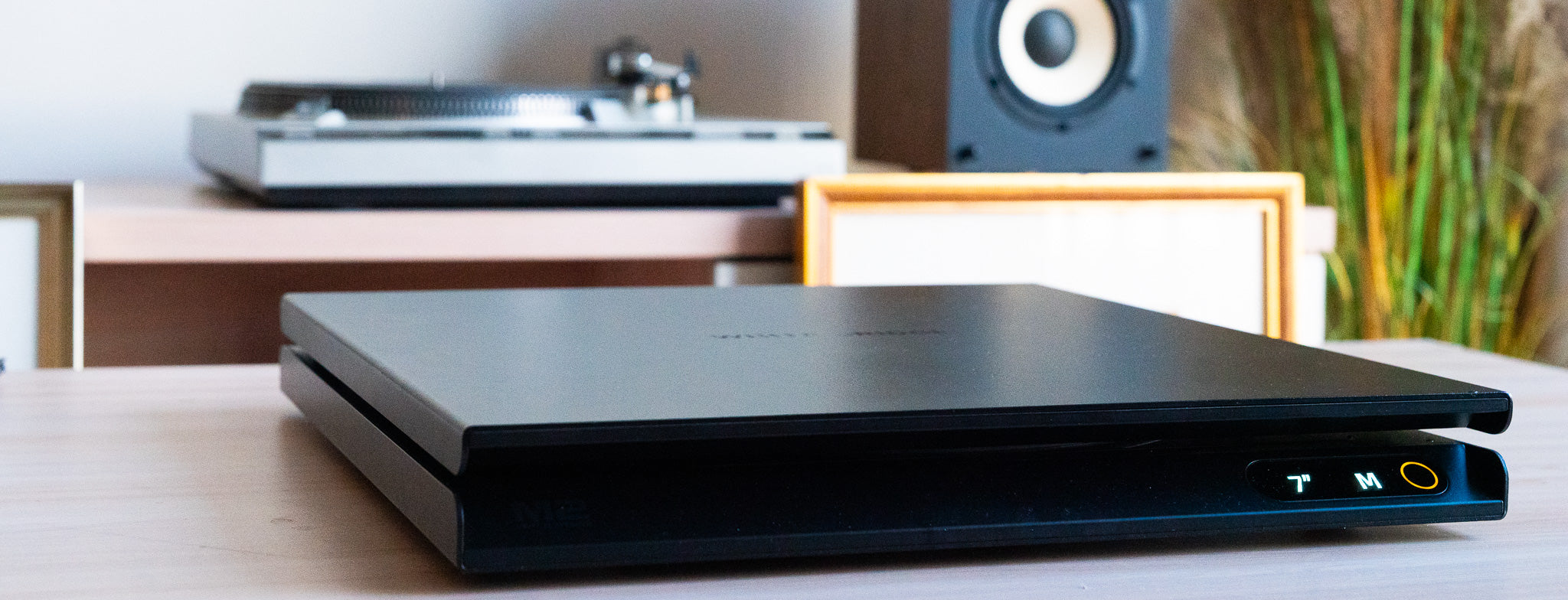

  • Compact Footprint, Heavyweight

    M2 is small enough for any shelf or workstation, slightly larger than standard 12” records, yet its 12 kg mass provides the weight of the top plate ensures consistent pressure across the entire record surface.

  • Works With Every Record Size

    Designed for all formats — 7”, 10”, and 12” records — including lightweight vintage pressings and modern 180g vinyl. M2 centers and supports any record type with equal precision.

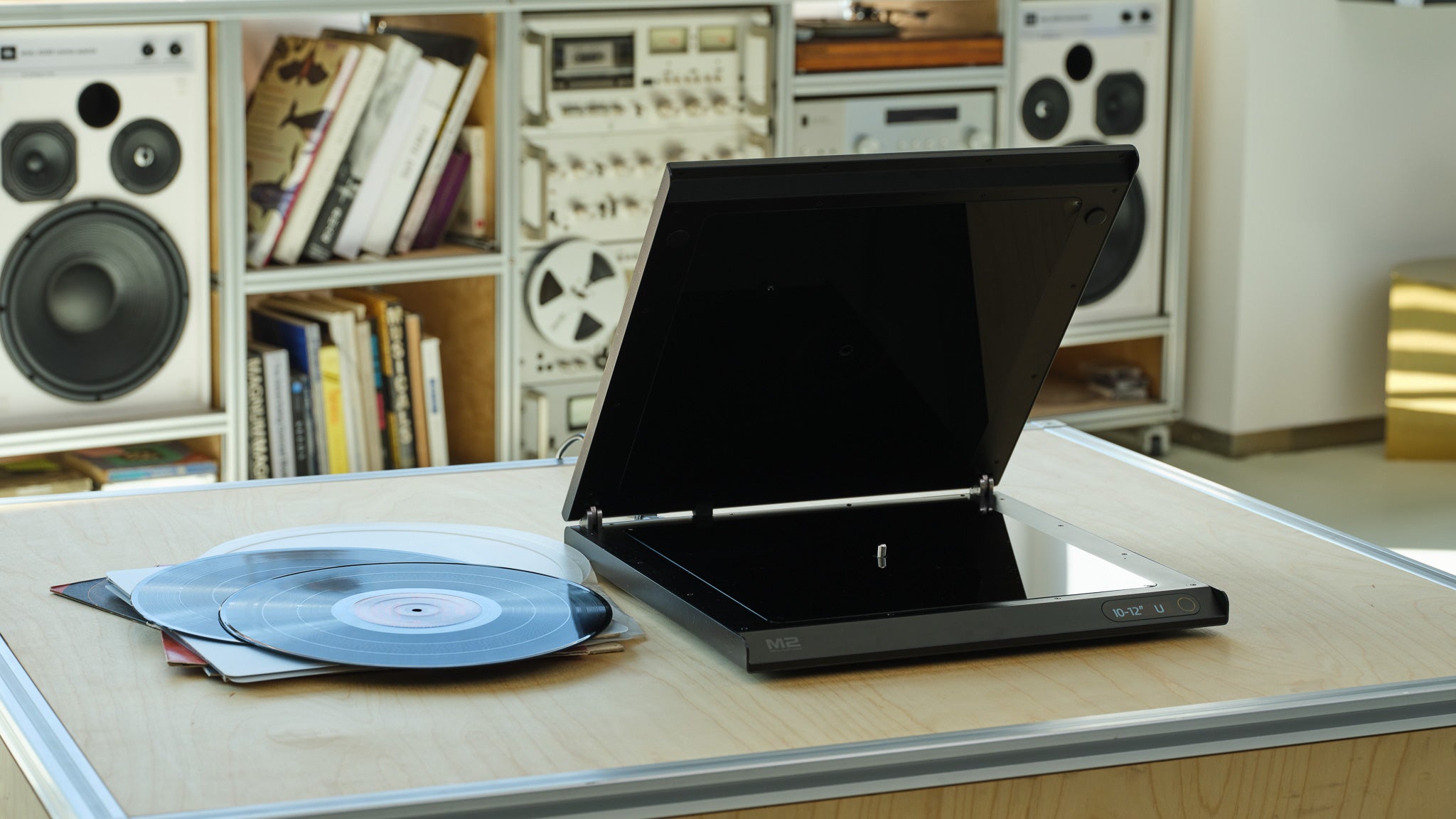

  • Multi-Angle Opening Mechanism

    A reinforced hinge system allows smooth, balanced opening at multiple angles. It’s designed for safe one-handed operation and daily use.

  • Simple Touchscreen Operation

    A clear, intuitive touchscreen gives you direct control over presets, temperature status, and cycle progress — with no learning curve.

  • ±0.2°C Precision Temperature Control

    A medical-grade feedback system maintains heating within ±0.2°C, preventing hotspots and ensuring safe, repeatable flattening every session.

  • Microcrystalline Glass Contact Plate

    The engineered glass surface offers ultra-flat geometry and low thermal expansion. Its uniform heat transfer enables sub-0.1 mm flattening accuracy.

  • Restores Even Severe Warps

    From dish warps to aggressive edge lifts, M2’s controlled heat–hold–cool cycle gradually relaxes the vinyl back to a stable, playable shape.

  • Space-Saving Vertical Storage

    When not in use, M2 can be stored upright. Its rigid geometry and balanced base keep it stable while reducing footprint in your setup.

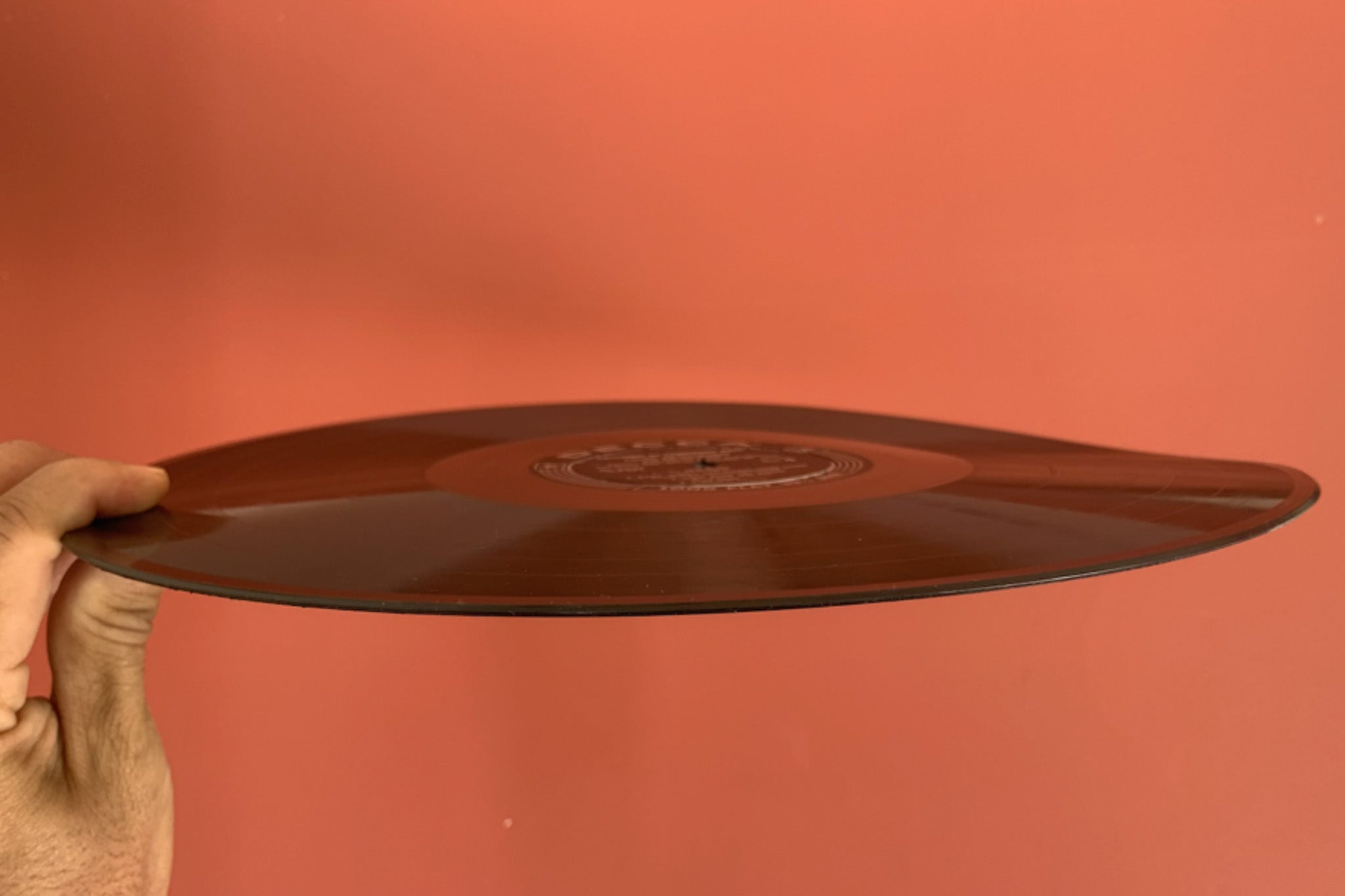

Where Warped Records Come From

Whether new or vintage, warped records are more common than ever. Manufacturing stresses, heat exposure, and improper storage all play a role. Here’s a clear breakdown of how and why warping happens.

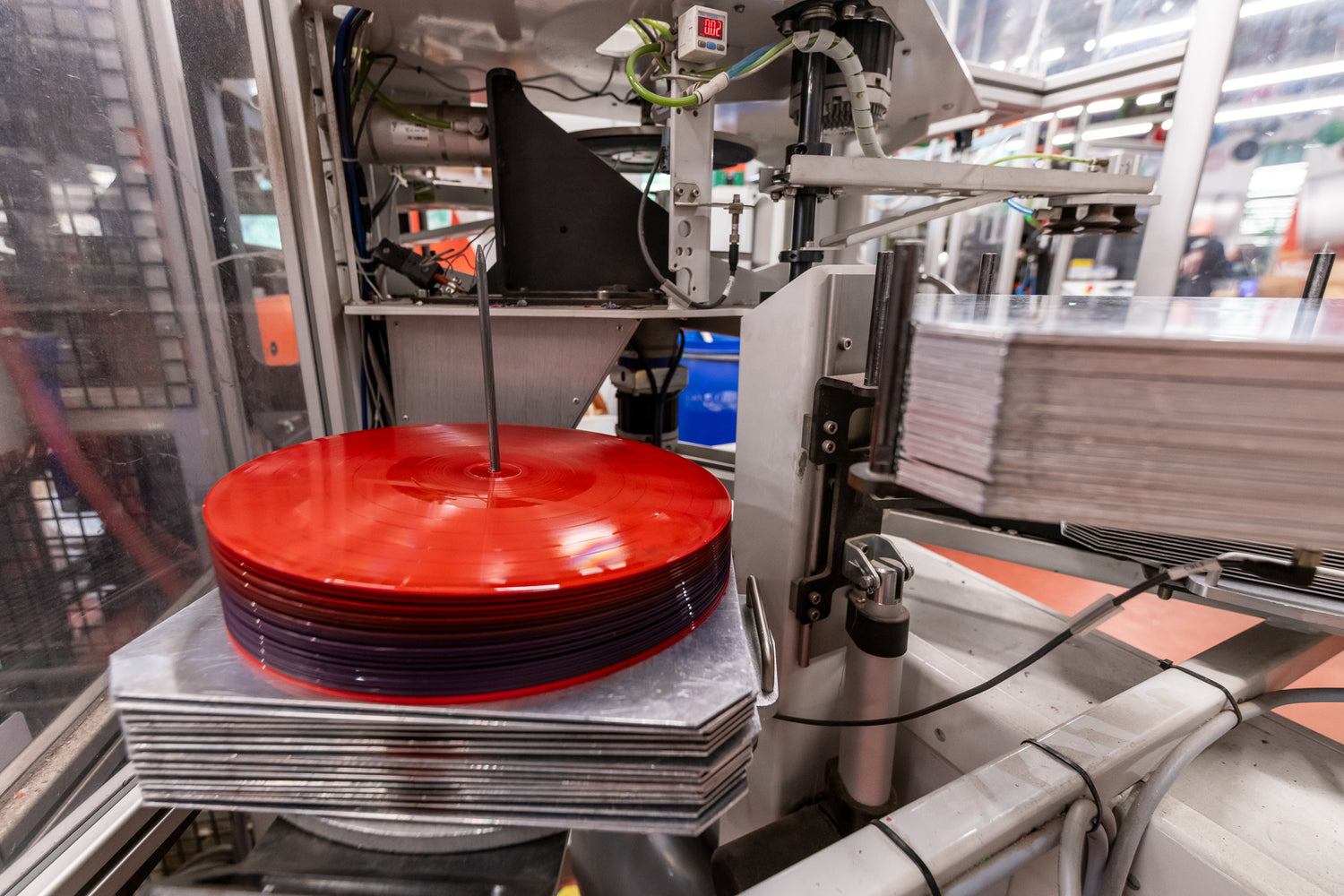

Manufacturing Process

Warps can appear the moment a record leaves the press.Residual internal stress, uneven cooling, and inconsistencies during the manufacturing process can create subtle dish-shaped bends that only worsen over time.

Heat Exposure

In everyday use, heat is the biggest enemy.
Direct sunlight, warm rooms, tightly packed shelves, or even storing records at a slight angle can cause gradual deformation. Vinyl softens around 60–70°C — far lower than most people realize — making unintentional warps surprisingly common.

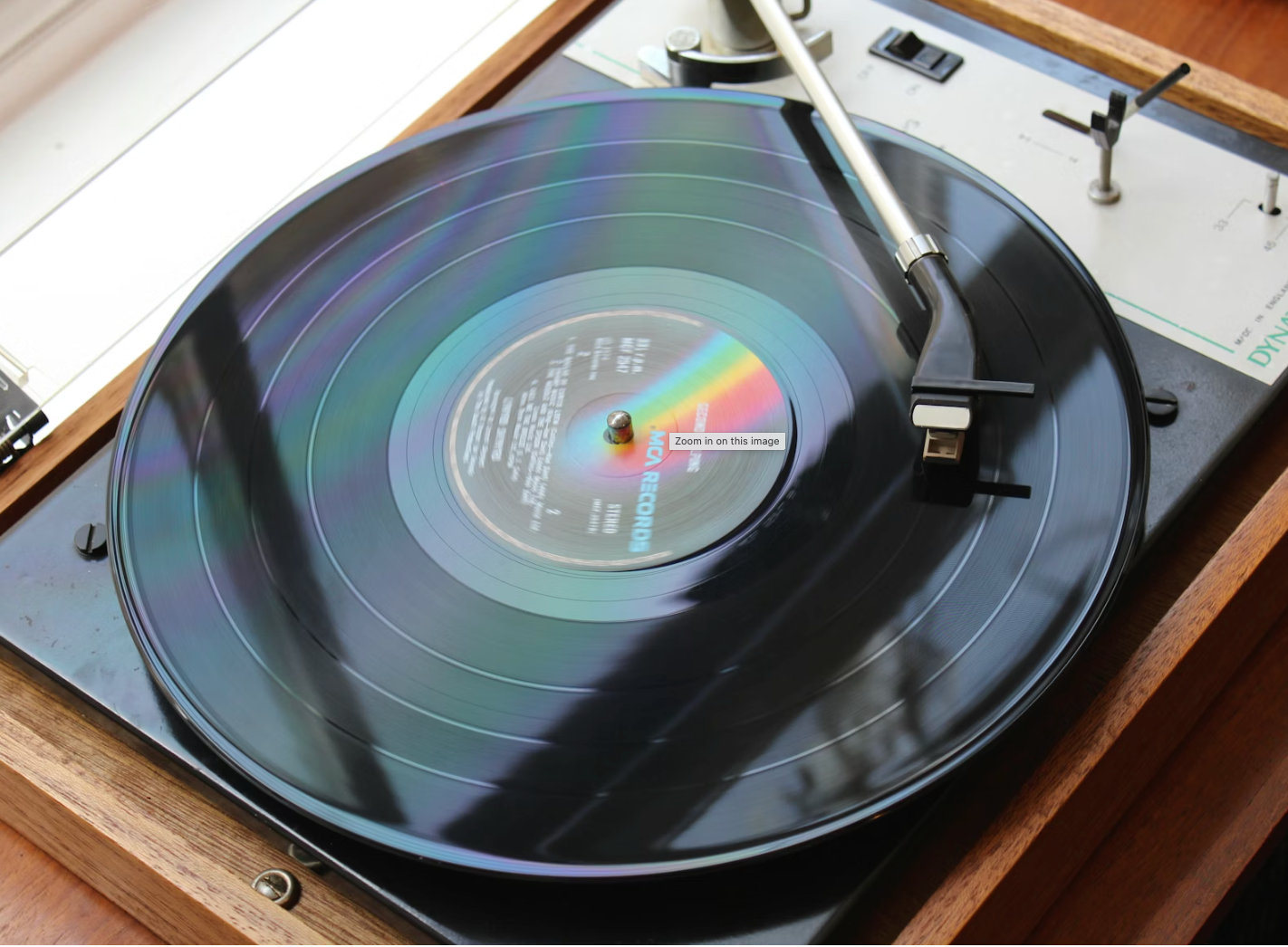

How Warps Affect Sound & Gear

A warped record doesn’t just create an audible wobble — it disrupts the entire playback system. Warps introduce irregular vertical and low-frequency motion that your stylus, cartridge, tonearm, and even speakers must react to. Over time, these unnatural movements can affect both sound quality and equipment longevity.

Stylus Tracking Distortion & Cartridge Wear

When a stylus encounters a warp, it’s forced to ride steep vertical waves instead of a stable groove. This sudden lift-and-drop motion can cause tracking distortion, pitch instability, and increased surface noise. Severe warps may even cause the stylus to momentarily lose contact with the groove, risking mistracking or skip.

These repeated vertical shocks place stress on the cartridge suspension, cantilever, and stylus profile — accelerating wear far faster than normal playback.

Irregular Low-Frequency Motion Stress Speakers

Warped records introduce subsonic, low-frequency oscillations — motion so slow and deep that you can’t hear it, but your audio system must still reproduce it. This “rumble” causes woofer cones to pump in and out aggressively, even during quiet passages.

Over time, this unnecessary excursion can strain speaker drivers, reduce dynamic range, and trigger anti-skate and amplifier protection circuits. In severe cases, playback becomes visibly unstable as the system fights against frequencies that were never meant to be in the music.

Warp Hurts Resale Value

In the resale market, warps immediately downgrade a record’s condition, often by multiple grading steps. This means fewer interested buyers, lower bids, and higher chances of returns or disputes — especially for rare or collectible releases.

Warps Reduce Grading and Collector Value

Warping is considered a structural defect in record grading. Even if a record plays cleanly, a visible warp can downgrade it from Near Mint to VG or lower — often cutting resale value in half. In real collector groups and Discord marketplaces, buyers commonly pass on warped pressings or demand steep discounts, especially for rare variants or limited runs.

A record that might sell instantly when perfectly flat can sit unsold for weeks if it shows even a slight dish warp. Flattening a record restores not only its playability but also the confidence that collectors look for when buying, trading, or valuing vinyl.

Science Behind Vinyl Flattening

Vinyl is a thermoplastic material — meaning it softens with heat and reshapes as it cools. Effective flattening requires three things: controlled temperature, uniform contact, and stable downward pressure. Get any of these wrong, and the results become inconsistent or unsafe. M2 was engineered around the physics that truly matter.

  • Controlled Heat Treatment

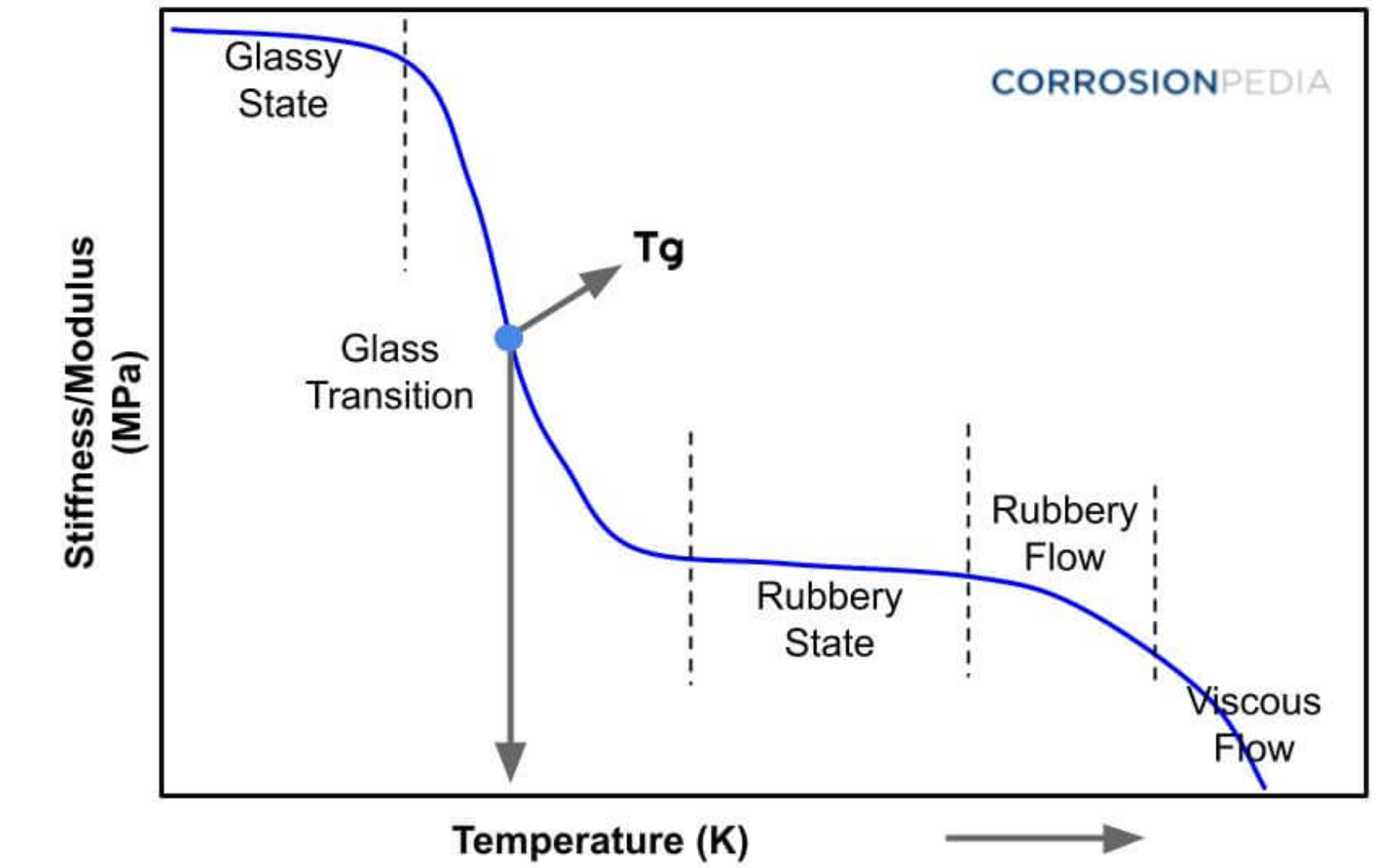

    Vinyl records are made from plasticized PVC, a thermoplastic that begins to soften as it approaches its glass transition temperature (Tg), typically around 70–80°C. Above this point, the material becomes rubber-like, and even slight temperature increases can permanently distort the delicate groove structure. Effective flattening must therefore operate well below Tg, in a very narrow temperature window where the vinyl is warm enough for internal stresses to relax but still firm enough to preserve its audio geometry. This safe zone spans only a few degrees, which is why precise temperature control is critical. Many devices fluctuate 1–2°C or more, risking localized softening or uneven heat distribution. M2 maintains thermal stability within ±0.2°C across the entire surface, keeping the vinyl consistently inside the optimal relaxation range. This level of precision allows the record to warm gently and uniformly, ensuring reliable flattening while fully protecting the grooves from deformation.

  • Uniform Contact and Stable Pressure

    Vinyl flattens safely only when heat, surface flatness, and pressure work together. When warmed below its glass transition temperature, the record becomes flexible enough for internal stresses to relax — but only if it sits against a perfectly flat, rigid surface. Any uneven contact or pressure causes the softened vinyl to settle inconsistently, creating new waves or incomplete correction.

    Consistent downward force is also necessary to keep the disc fully seated as it warms. Too little pressure allows lifting or air pockets; too much can imprint new stress patterns. When uniform contact, stable pressure, and controlled sub-Tg heating are combined, the vinyl cools back into a smooth, stable shape. These principles define the science behind effective warp correction.

Innovation Through Material Science

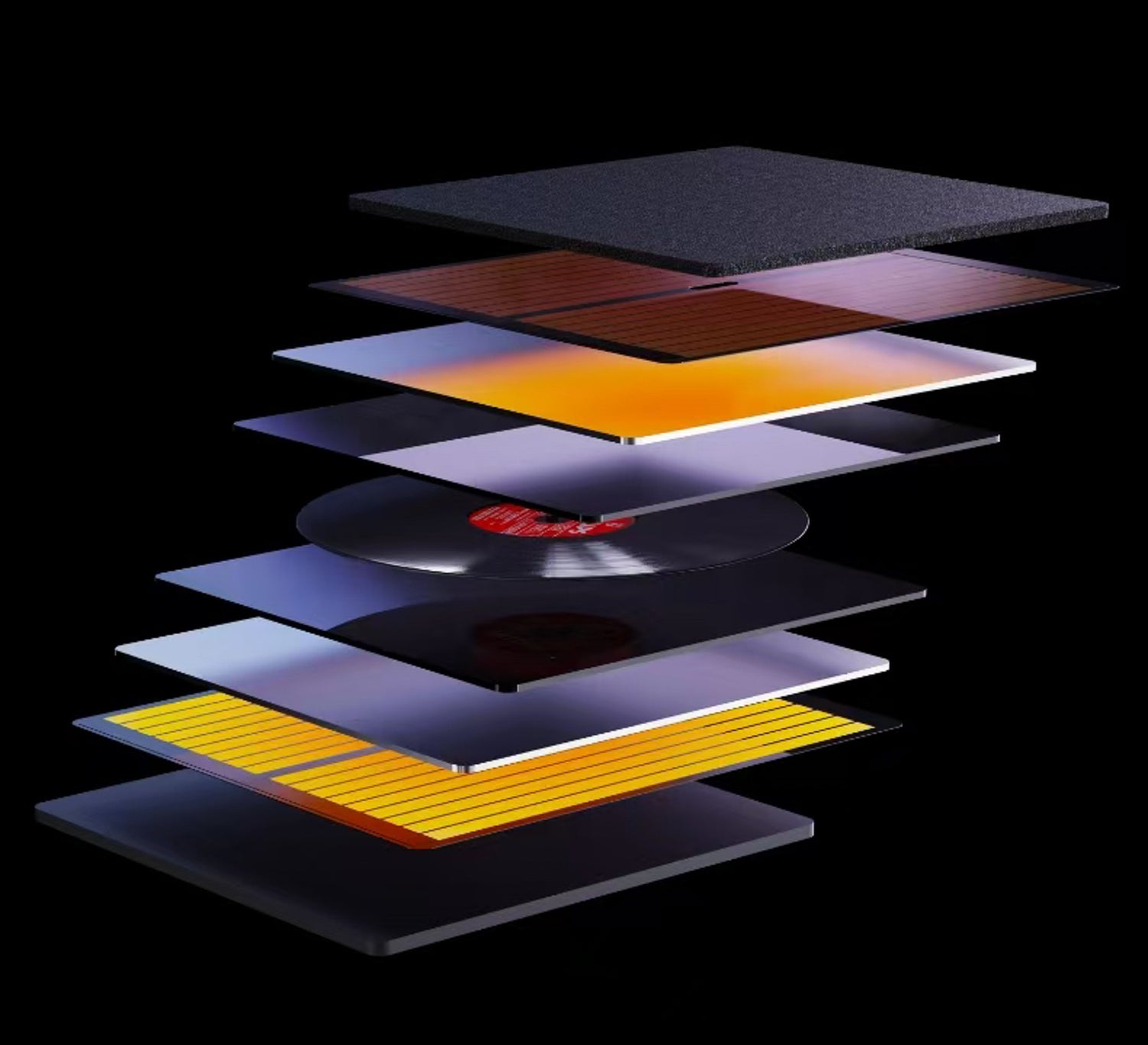

Every key component was carefully selected for its thermal stability, rigidity, and consistency. From microcrystalline glass to engineered aluminum structures, each material was chosen not for tradition, but for performance. The result is a device that delivers uniform heat, precise contact, and long-term reliability.

Multicolumn

  • Thermal Shield  - NBR & PVC

    M2 features a high-density closed-cell thermal shield made from NBR and PVC composites. Produced through a specialized foaming process, its independent microcell structure blocks internal airflow and significantly reduces heat transfer. This insulation layer forms a barrier between the heating core and the outer shell, keeping the surface cool while maintaining precise internal temperatures. The result is safer operation, greater energy efficiency, and long-term thermal stability for years of reliable use.

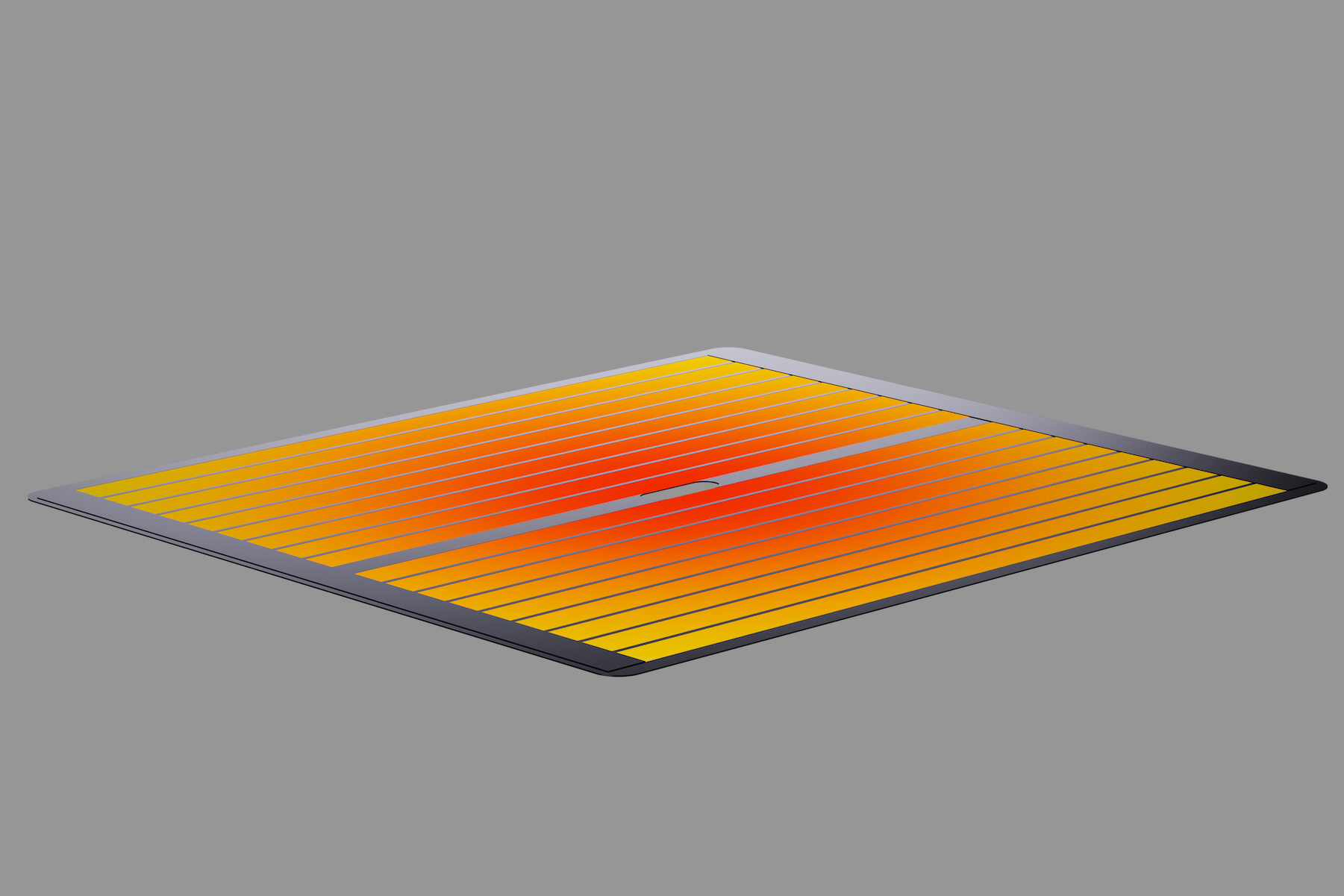

  • Active Heating Core - Graphene

    A next-generation graphene heating film delivers up to 98% thermal conversion efficiency (compared to an industry average of ~85%), providing fast, stable thermal energy with significantly lower power consumption and exceptional lifespan.

  • Thermal Distribution Plate  - Alumunium

    That energy is transferred into a layered platform weighing over 5kg, constructed from precision-machined aerospace-grade aluminum and 4mm microcrystalline glass. The aluminum core ensures rapid, uniform heat spread across the entire surface while providing the mass needed for uniform downward pressure.

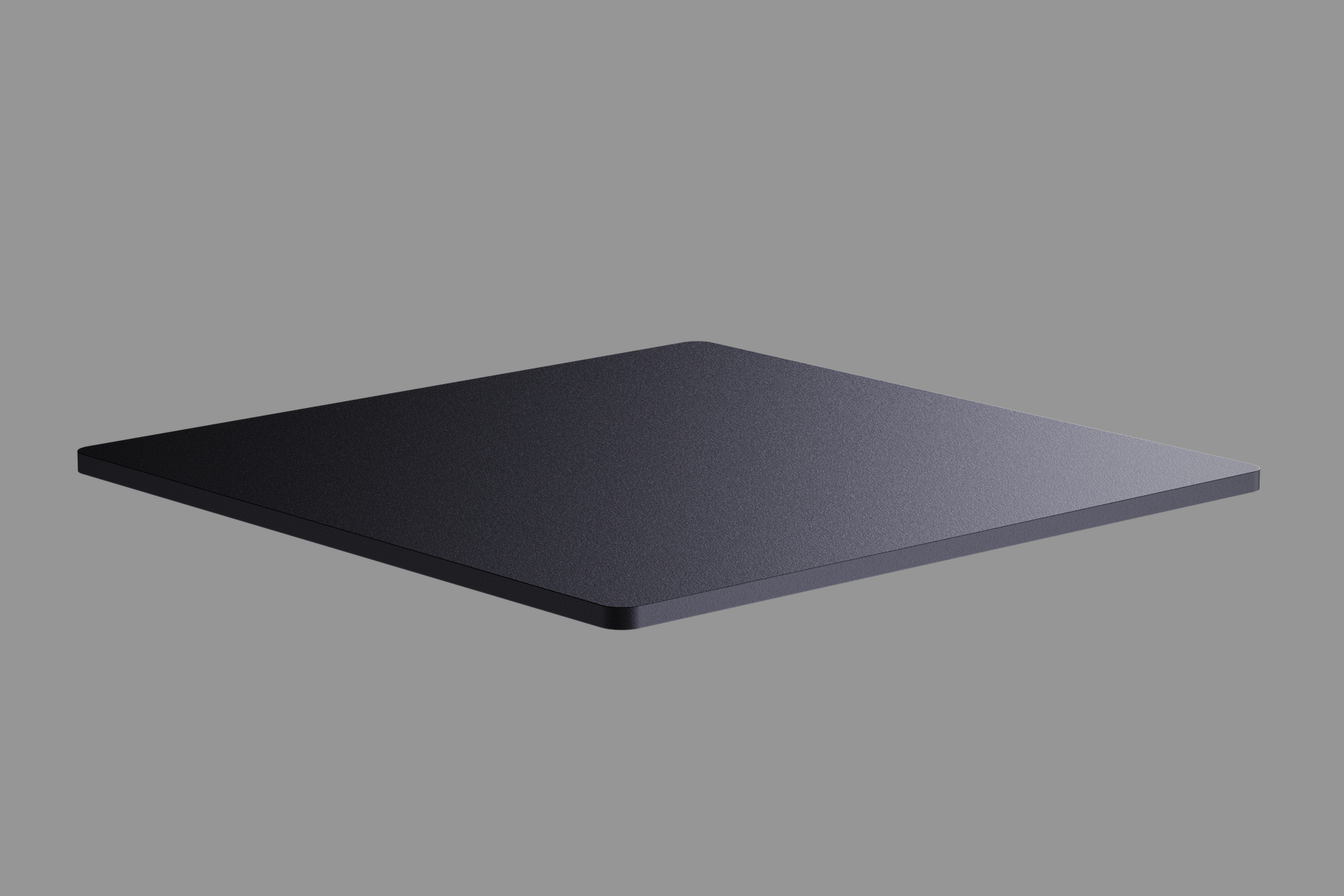

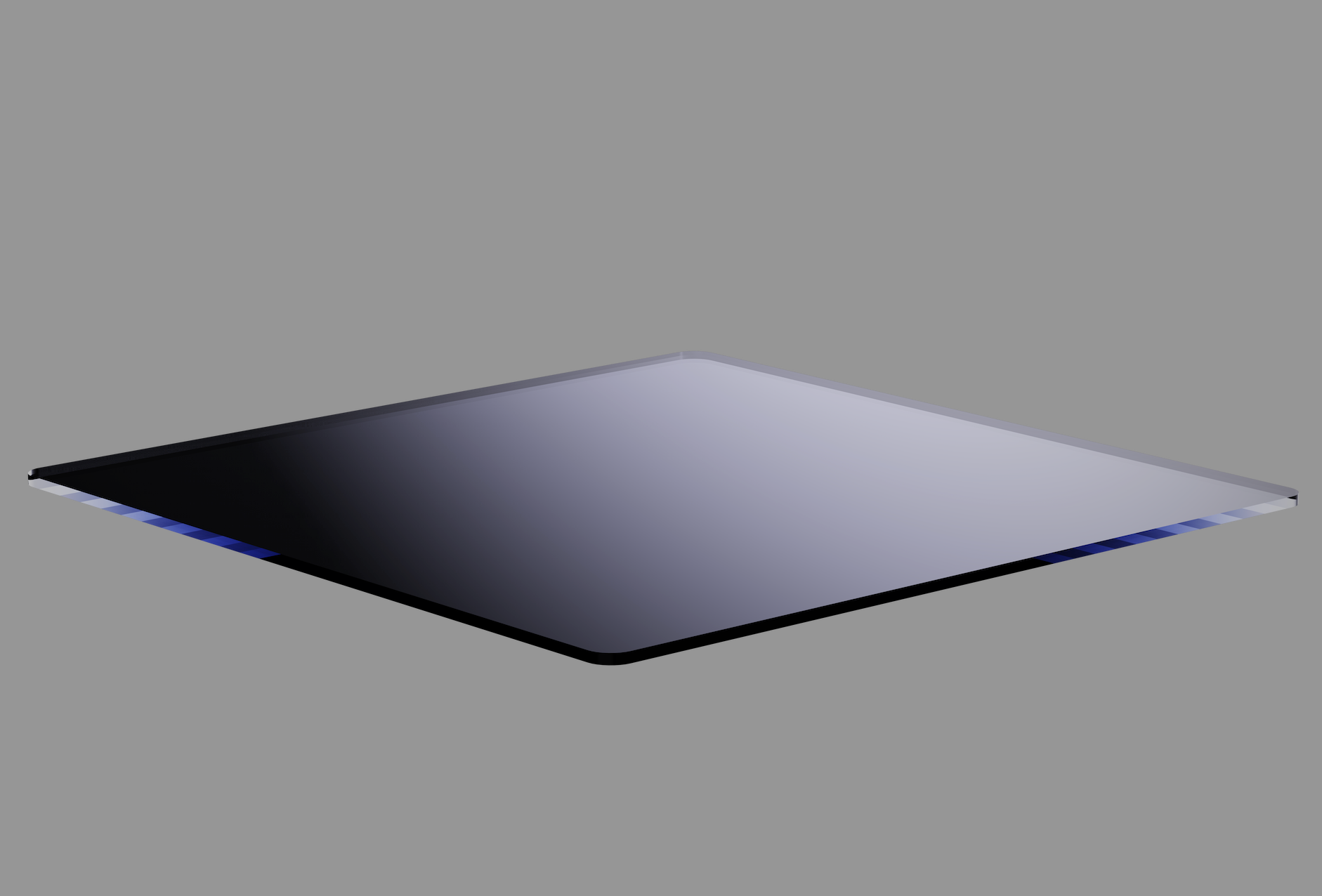

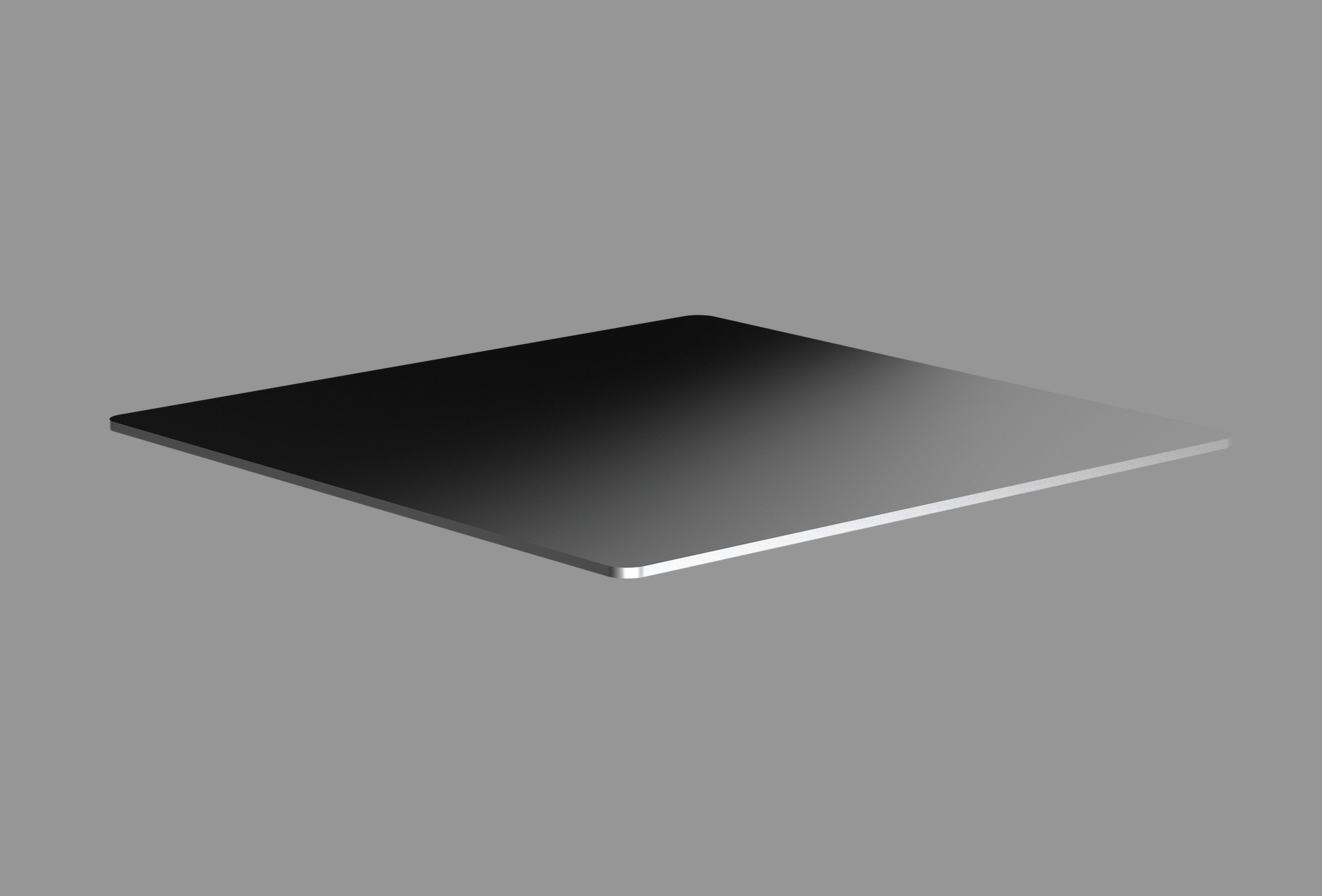

  • Precision Contact Glass - Microcrystalline Glass

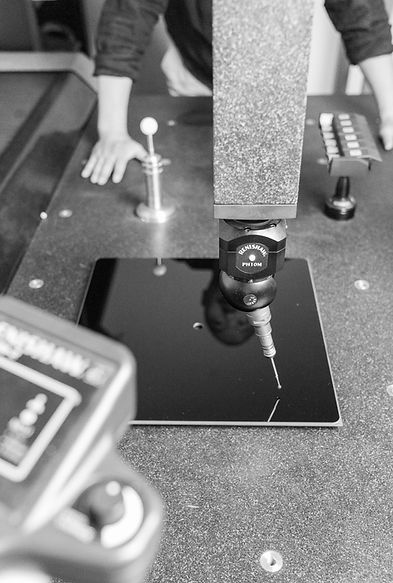

    This layer in direct contact with the vinyl — is chosen for its exceptional dimensional flatness and minimal thermal expansion. It deforms only 0.0025 mm between -50°C and 600°C, ensuring the record remains perfectly supported throughout the heating and cooling cycle. Its engineered micro-honeycomb structure on the underside enhances vertical thermal resistance, ensuring even heat distribution with no risk of surface hotspots.

Intelligent Thermal Control

At the heart of M2 is a closed-loop control system driven by embedded sensors and intelligent algorithms. This allows it to actively monitor internal temperature, ambient room conditions, and thermal feedback across the surface in real time. Based on this live data — and the size and type of record being flattened — M2 dynamically adjusts its heating curve, hold duration, and cooldown rate to suit the situation.

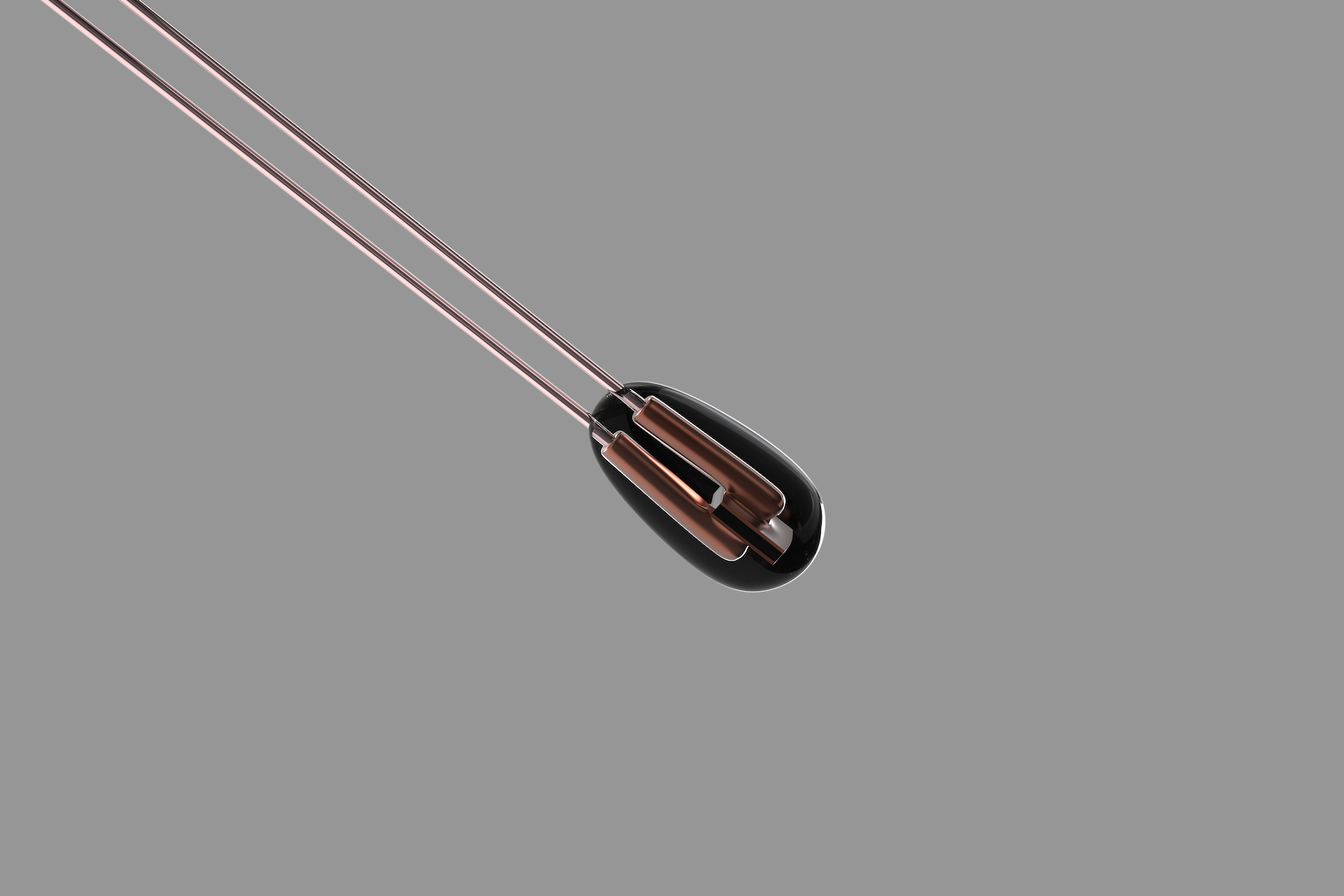

  • Medical Grade Sensor

    A medical-grade temperature sensor monitors the entire heating surface with ±0.2°C sensitivity, far tighter than typical consumer-grade devices. This high-resolution feedback allows the system to detect micro-changes in heat and react instantly, keeping the plate stable and preventing the fluctuations that can lead to uneven softening or groove stress.

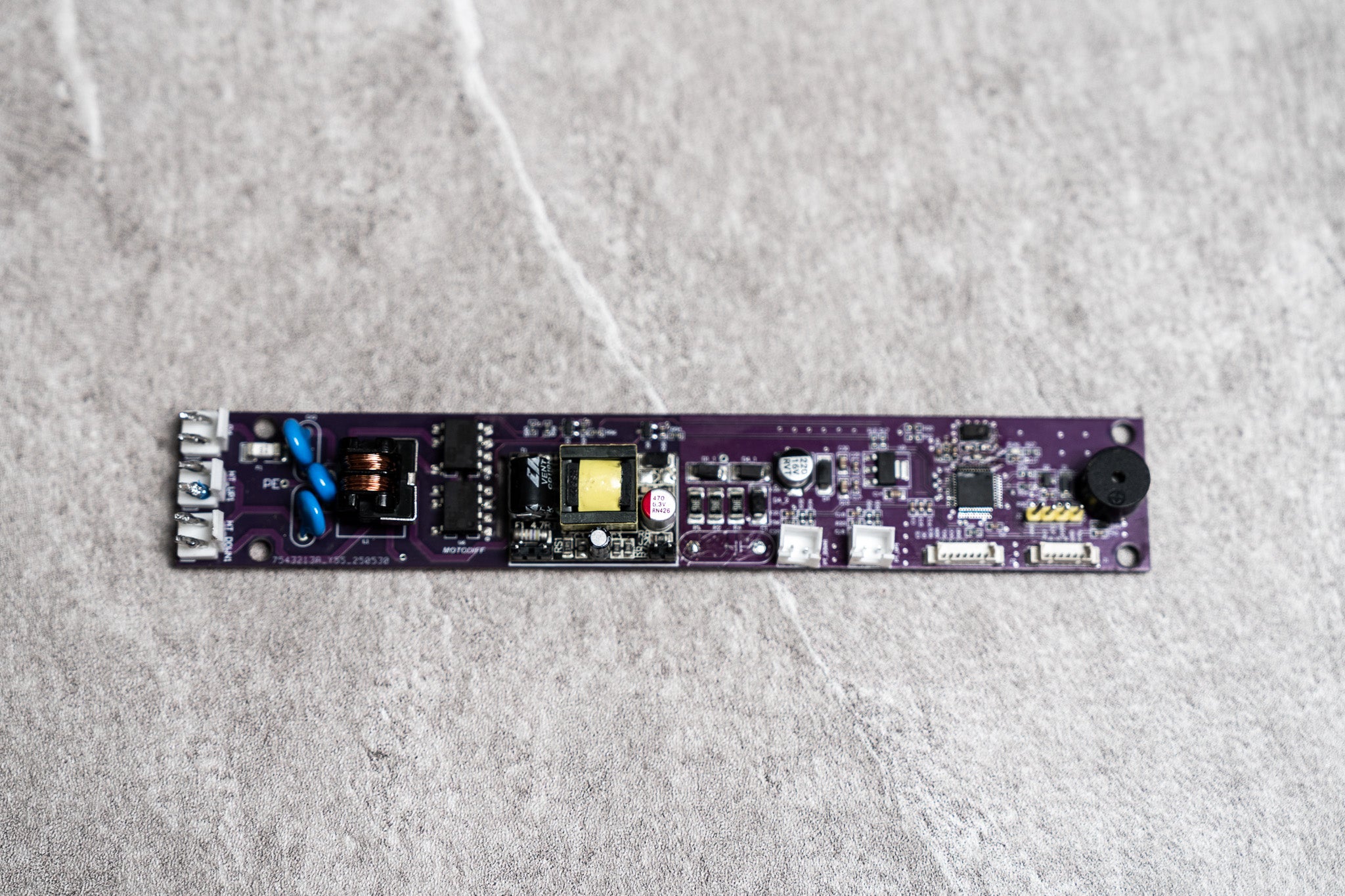

  • Advanced Chipset With Adaptive Control Algorithm

    An advanced control chipset runs a custom algorithm that manages the entire heat–hold–cool cycle. By analyzing sensor data in real time, it adjusts power delivery, stabilizes temperature, and ensures uniform heating across the plate—something conventional analog systems can’t achieve.

Precision Mechanical Engineering

A stable mechanical foundation is essential for consistent flattening. The device uses a precision-engineered structure that resists flexing, maintains flatness under heat, and delivers even pressure across the entire record surface. This mechanical integrity ensures repeatable performance over years of use.

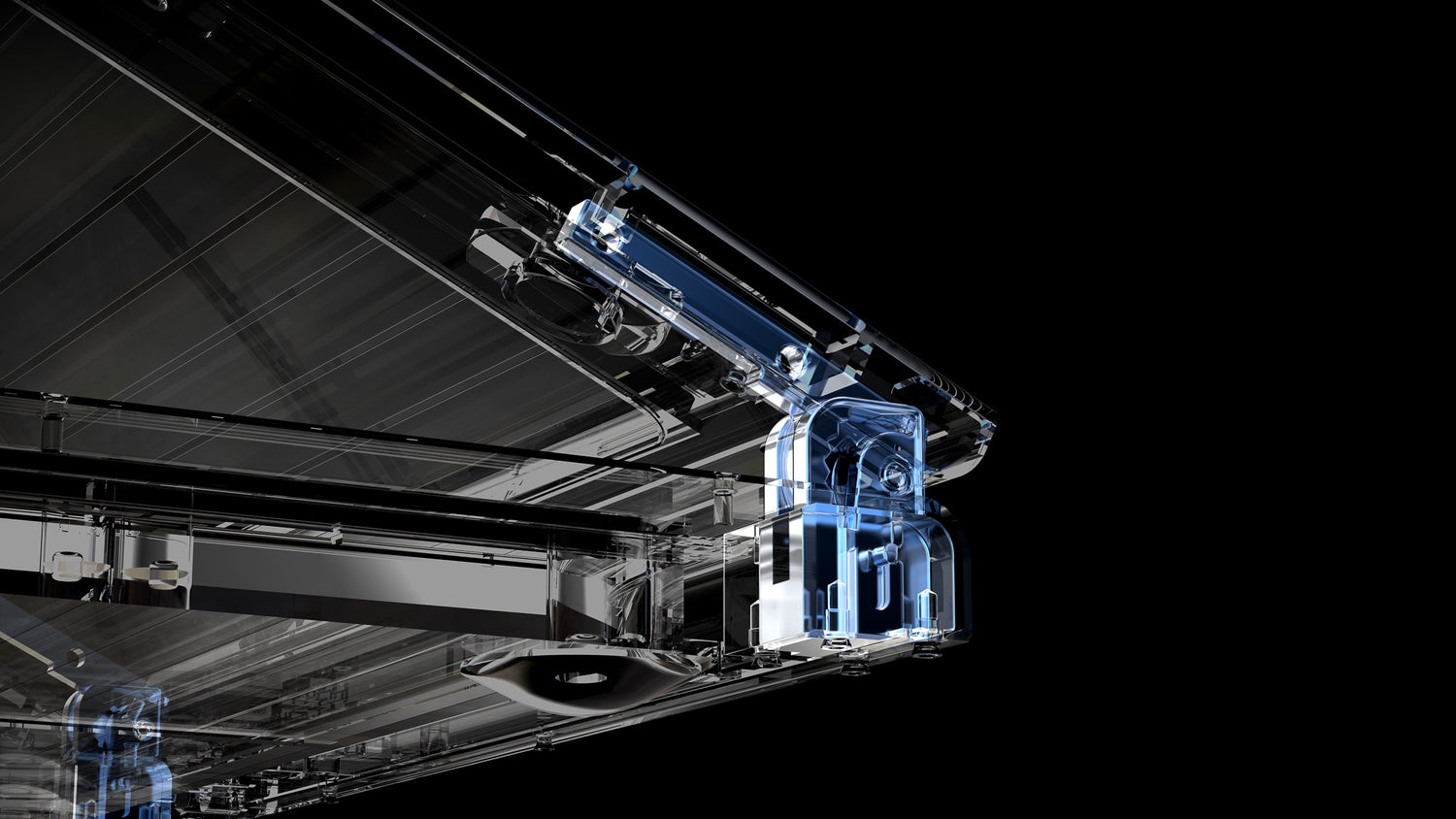

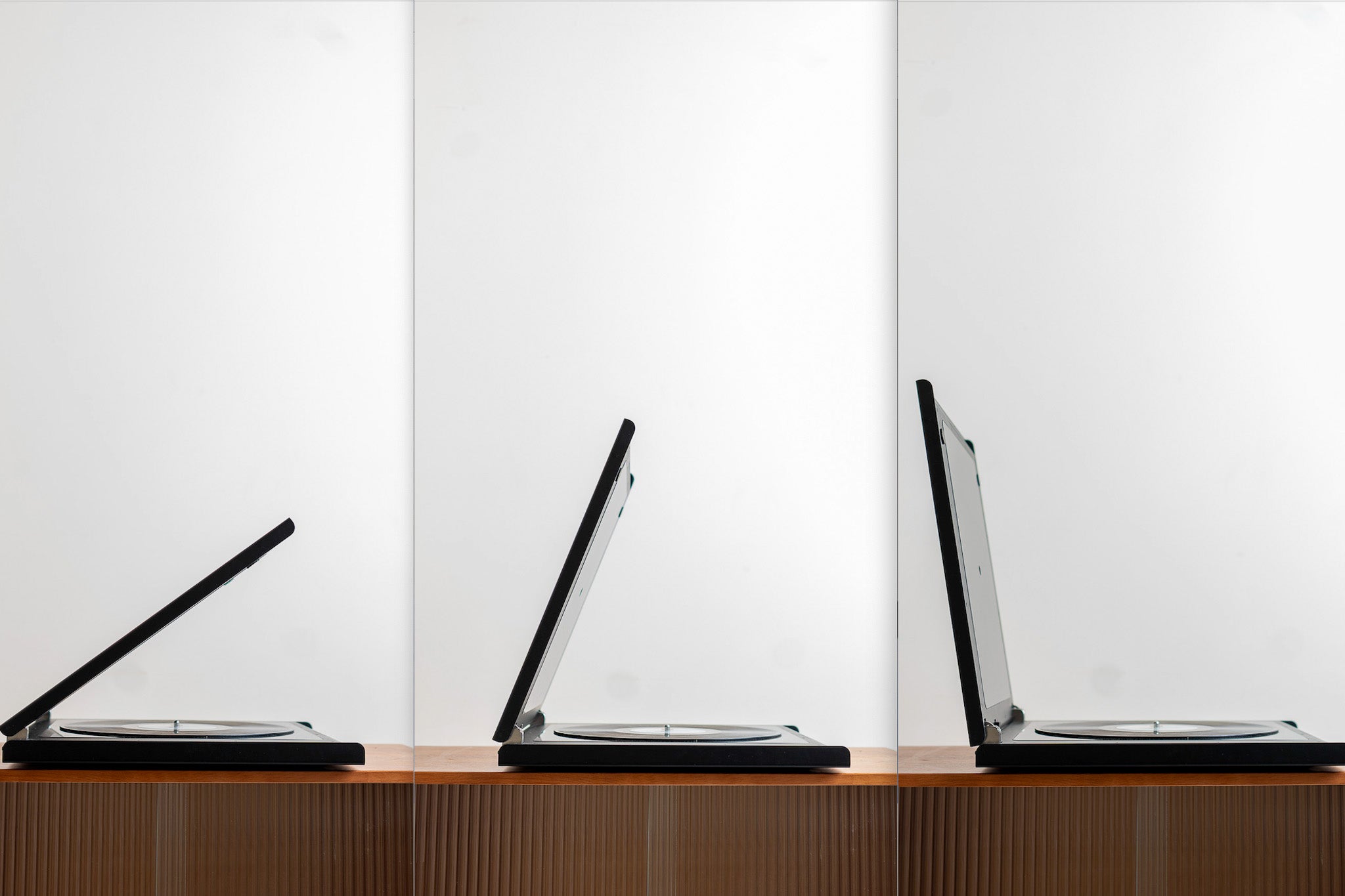

Reinforced Hinge

Built to handle the weight of the entire top assembly, the reinforced hinge remains stable under load and maintains perfect alignment. It can free-stand at multiple angles without drifting, making loading and inspection easier and safer.

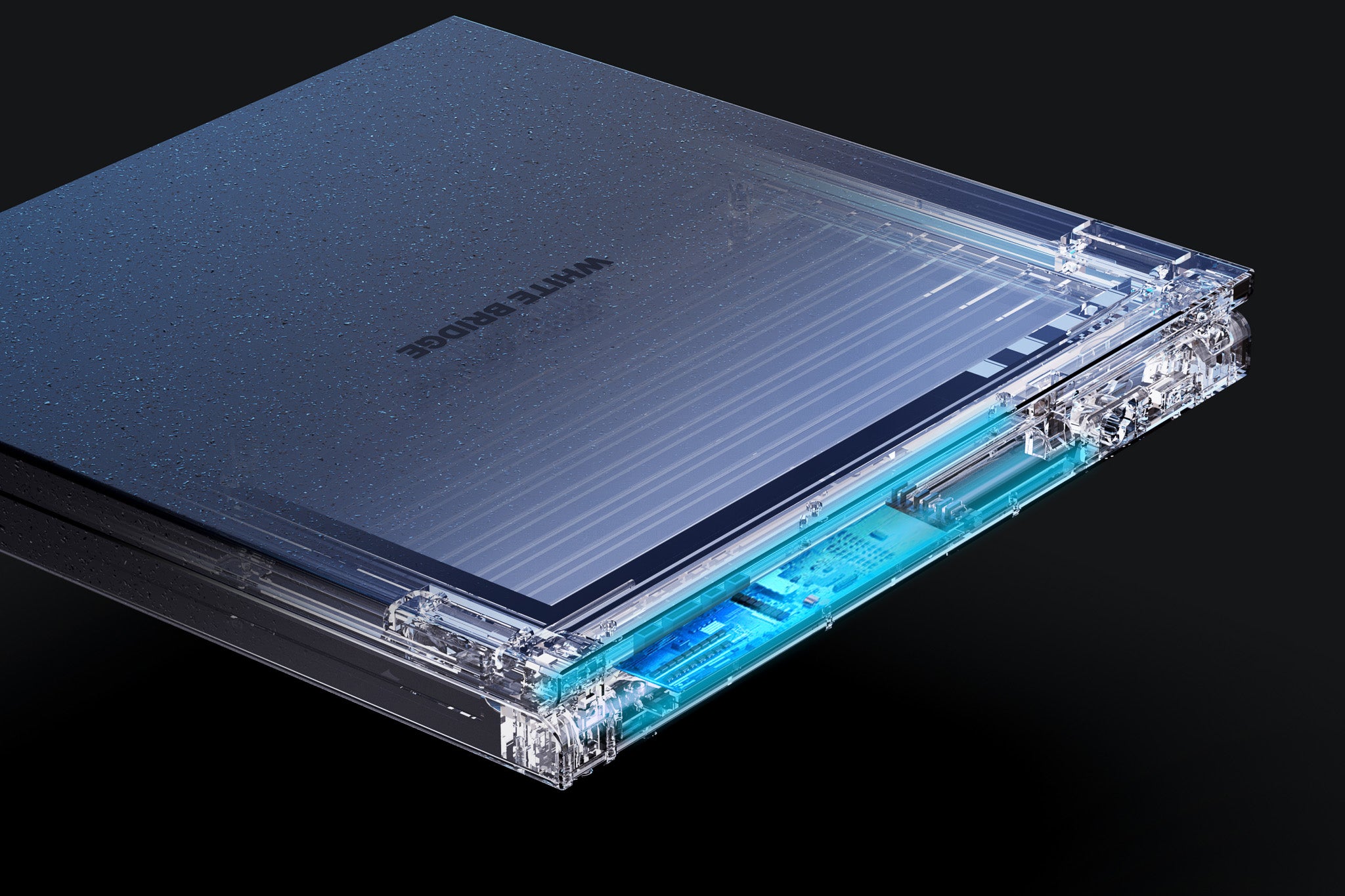

Structural Precision

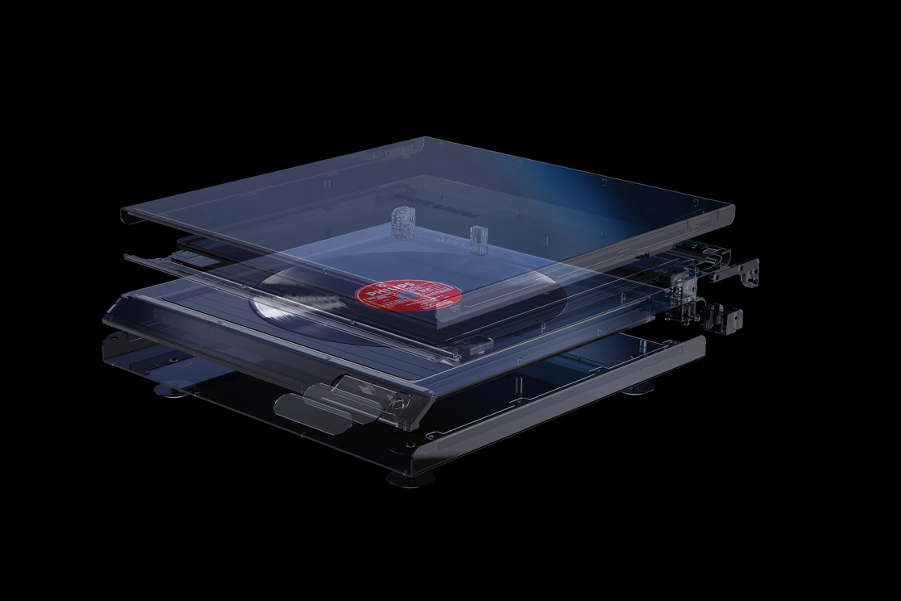

The construction reflects high-precision engineering and efficient internal architecture. Every structural layer—from the reinforced chassis to the dual-plate thermal assembly—is aligned to tight tolerances to maintain uniform pressure and thermal stability. The compact enclosure integrates mechanical, thermal, and electronic subsystems with no wasted space, creating a cohesive system where every component is purpose-built and precisely positioned.
